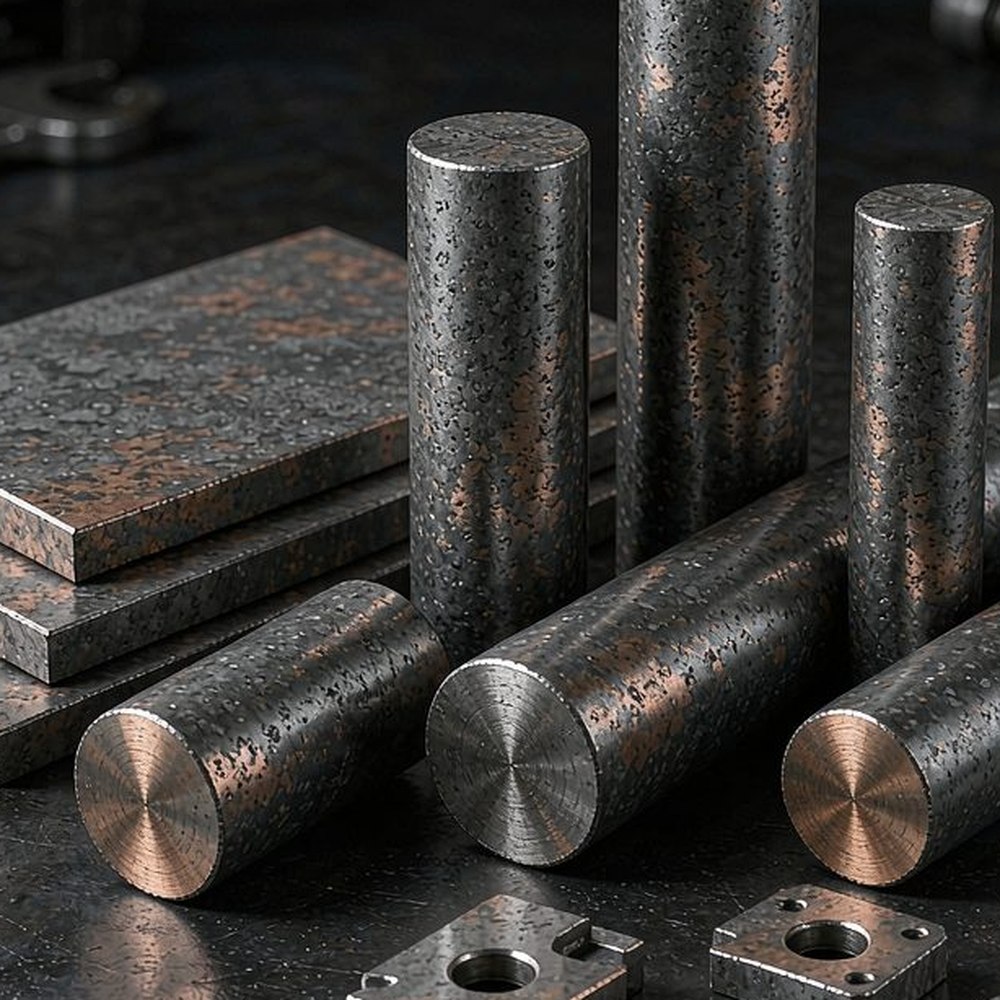

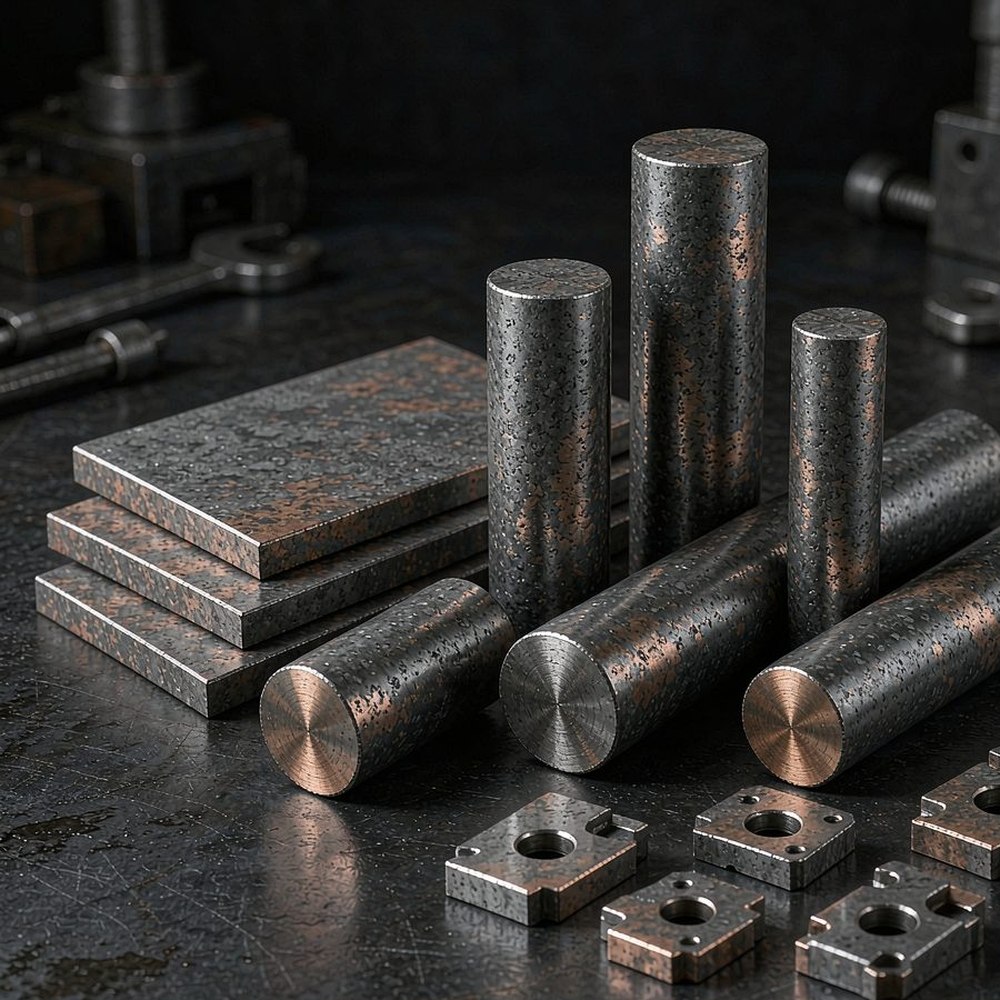

W-Cu EDM Electrodes
Overview
EDM electrodes with low wear rate and fine surface finish for mould making.
SpecificationsMaterialTungsten copper (W-Cu)
Grade / TypeW50 / W60 / W70 / W75 / W80 / W90
Density13.8 – 17.0 g/cm³ (by grade)
Size rangeØ6 – 25 mm · length 100 – 200 mm
Tolerance±0.02 mm (ground) · ±0.5 mm (as-sintered)
Surfaceas-sintered, ground, turned or polished
MOQ1 pc (stock sizes) · 5 pcs (custom)
Lead time7 – 15 days (stock) · 20 – 30 days (custom)
Inquiry
Hongxin Metal Materials (Dongguan) Co., Ltd.
Tel / WhatsApp+86 180 0266 5386
